King Power Synchronous Belts (KPS Ⅱ)

Features + Benefits
- Exceptional power transmission capability
The KPS Belt can transmit 1.5 to 5 times more power than a standard STS belt drive. This allows the same power transmission capacity to be achieved using smaller pulleys - saving space and money. - Versatile
Utilize standard STS pulleys for a wide ratio selection. - Deep pulley grooves are not required even on horizontal drives.
- Clean
Wear resistant polyurethane construction reduces rubber dust.

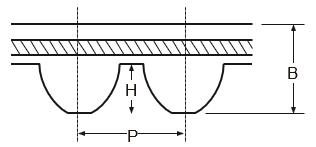

Dimensions

Type | P | H | B |
---|---|---|---|
KPS Ⅱ 8M | 8.00 | 2.86 | 4.80 |
KPS Ⅱ 14M | 14.00 | 5.00 | 8.50 |
