Agricultural V-Belts W800
Features + Benefits
- The Series W800 has heat and flex resistance superior to any other V-Belts, which makes it a top-end V-Belt for agricultural machinery use enabling high-load power transmission. You can be assured using this V-Belt in harsh environments.

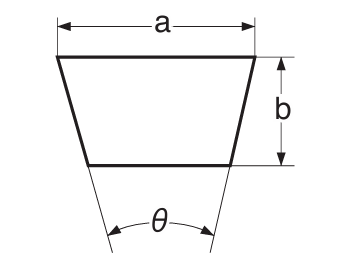

Dimensions
| Type | Top width a | Thickness b | Angle θ |
|---|---|---|---|
| SA | 12.7mm (0.5") | 7.0mm (0.27") | 40° |
| SB | 16.7mm (0.67") | 9.0mm (0.35") | 40° |
| SC | 22.2mm (0.87") | 11.0mm (0.43") | 40° |
